Production Process and Quality Control of Decorative Stainless Steel Sheet

I. Production Process of Decorative Stainless Steel Sheets

(A) Raw Material Preparation

(B) Sheet Processing

1. Coil Flattening：Transport the stainless steel coils to the flattening workshop and use professional flattening equipment for flattening and cutting according to the production plan. During flattening, strictly control the force and speed to ensure the flatness and straightness of the sheets meet the standard requirements. Also, record information such as batch number, steel type, production date, and surface properties of each batch of sheets for subsequent production tracing and quality control.
2. Cutting and Trimming：According to customer orders and design drawings, use high - precision cutting equipment such as CNC laser cutting machines and plasma cutting machines to cut the flattened sheets into the required dimensions and shapes. When cutting, precisely set the cutting parameters to ensure the edges are neat, smooth, and burr - free. After cutting, trim the edges of the sheets to remove excess material and burrs to ensure overall quality.
3. Bending and Punching：If producing decorative stainless steel sheets with bending or punching designs, place the cut sheets on professional bending or punching machines. During bending, adjust the mold and pressure parameters of the bending machine based on the sheet thickness and material characteristics to ensure the accuracy of the bending angle and the forming quality of the sheets. Punching must ensure the accuracy of hole positions, the regularity of hole shapes, and the edge quality of the holes.

(C) Surface Treatment

1. Polishing：Polishing is a key process to enhance the surface gloss and aesthetics of decorative stainless steel sheets. Place the selected sheets on a polishing machine and choose appropriate polishing wheels and polishing agents based on the initial surface condition and desired polishing effect. During polishing, strictly control the time, pressure, and rotational speed to avoid over - polishing that may damage the sheet surface or cause scratches. After polishing, the sheet surface should have a mirror - like gloss with clear reflections, free of obvious scratches or dimples.
2. Brushing：Brushing imparts a unique texture and decorative effect to decorative stainless steel sheets. Depending on design requirements and usage scenarios, various brushing methods such as straight - hair, random, or wave - pattern brushing can be used. During brushing, accurately control process parameters such as the angle, depth, and speed to ensure uniform, clear, and continuous brushing textures without broken lines or uneven thickness. Brushed sheets with different grits offer distinct visual and tactile effects and should be classified and inspected according to customer requirements.
3. Sandblasting：Sandblasting uses compressed air to project abrasive materials like glass beads or alumina onto the sheet surface at high speed, creating a uniform sand - like decorative finish. During sandblasting, select appropriate abrasive types, particle sizes, and air pressure based on the sheet material and desired effect. After sandblasting, the sheet surface should feel smooth, with uniform sand texture, no obvious color differences or uneven blasting, and exhibit a fine matte finish with slip - resistant properties.
4. Etching：Etching forms intricate patterns, text, or textures on the surface of decorative stainless steel sheets through chemical etching. First, create etching film or templates according to design requirements, then place the sheets in etching equipment and use specific etching solutions and conditions for processing. During etching, strictly control parameters such as time, temperature, and solution concentration to ensure pattern clarity, depth, and smooth lines. After etching, clean and neutralize the sheets to remove residual etching solution and prevent corrosion.
5. Coating：Coating applies a metal or ceramic film to the surface of decorative stainless steel sheets via methods like physical vapor deposition (PVD) or chemical vapor deposition (CVD), enriching their color palette and enhancing hardness and corrosion resistance. During coating, precisely set parameters of the coating equipment, including vacuum degree, temperature, and evaporation rate of coating materials, to ensure uniform film thickness and adhesion. Coated sheets should have pure, vibrant colors and uniform film thickness without obvious color differences, spots, or peeling.
6. Fingerprint - resistant Treatment：To prevent fingerprint stains from affecting the appearance of decorative stainless steel sheets, a special fingerprint - resistant coating is often applied to the sheet surface. This coating features excellent corrosion resistance, wear resistance, and anti - fingerprint properties. During application, ensure uniform coating to avoid thickness issues or missed spots. After treatment, the sheet surface should be smooth, resistant to fingerprint adhesion, and easy to clean.

(D) Finished Product Inspection and Packaging

1. Dimensional Inspection：Use high - precision measuring tools such as tape measures, micrometers, and thickness gauges to comprehensively inspect the dimensions of the completed decorative stainless steel sheets. Inspection covers length, width, thickness, diagonal deviation, and flatness. Strictly follow national standards or customer requirements to ensure all sheet dimensions fall within acceptable tolerances. Sheets with dimensional deviations should be reworked or scrapped.
2. Surface Quality Inspection：Inspect the surface quality of decorative stainless steel sheets under natural light or similar conditions. Check for surface defects such as scratches, abrasions, dents, dimples, color differences, spots, and orange - peel effects. Also, verify that surface treatment processes meet requirements, including uniform polishing gloss, clear brushing textures, complete etching patterns, and pure coating colors. Sheets failing surface quality inspections should be traced back to problematic production stages for rectification and rework.
3. Performance Testing：To ensure the reliability and durability of decorative stainless steel sheets in practical applications, conduct various performance tests such as corrosion resistance, wear resistance, adhesion, hardness, and high - temperature resistance. Corrosion resistance testing typically uses salt spray tests, where sheets are placed in a salt spray chamber to simulate harsh environments like marine or industrial settings. After a specified period, observe surface corrosion. Wear resistance testing employs professional equipment to measure surface wear under specific pressure and friction cycles. Adhesion testing checks the bond strength between surface treatment layers and the substrate to prevent delamination during use. Hardness and high - temperature resistance tests evaluate sheet hardness and stability in high - temperature conditions. Only sheets passing strict performance tests and meeting relevant standards are deemed qualified.

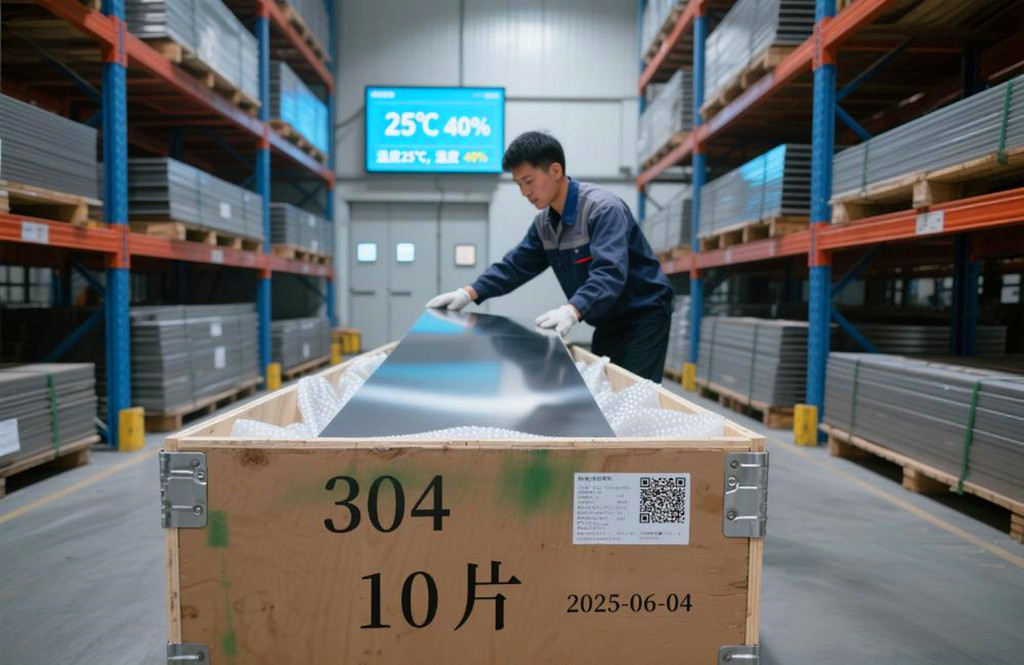

4. Packaging and Warehousing：Package qualified decorative stainless steel sheets using materials such as cardboard boxes, wooden crates, and plastic films, along with protective materials like moisture - and rust - proof paper inside the packaging to prevent damage during transportation and storage. Mark the packaging with sheet specifications, model, quantity, production date, batch number, etc., and include a certificate of conformity and quality inspection report. Store the packaged sheets neatly on shelves in a dry, well - ventilated, and secure warehouse until shipment to customers.

II. Quality Control of Decorative Stainless Steel Sheets

(A) Raw Material Quality Control

1. Strict Supplier Screening：Establish a robust supplier evaluation and screening system. Conduct comprehensive reviews of raw material suppliers, including their production credentials, equipment, quality control systems, and environmental standards. Prioritize suppliers with certifications like ISO9001 and ISO14001 to ensure reliable high - quality raw material supply.
2. Enhanced Raw Material Inspection：Set up a dedicated quality inspection department and personnel to conduct strict incoming inspections of stainless steel coils according to national or industry standards. Inspection covers chemical composition, mechanical properties, and surface quality. Key indicators include steel grade, carbon, chromium, nickel content, tensile strength, yield strength, and elongation. Regularly calibrate and maintain inspection equipment to ensure result accuracy. Reject non - compliant raw materials to prevent them from entering the production process.
3. Raw Material Traceability System：Maintain detailed records for each batch of raw materials, documenting procurement date, supplier name, batch number, quality inspection report number, storage date, and usage. This enables quick identification of problematic raw material sources and batches during production, allowing timely measures to mitigate quality risks.

(B) Processing Quality Control

1. Standardized Work Instruction Development：Create detailed standardized work instructions (SWI) for each processing stage of decorative stainless steel sheet production. SWIs should outline steps, process parameters, equipment requirements, and quality standards to ensure uniform and standardized operations. Regularly review and update SWIs to reflect production realities and technological advancements.
2. Operator Training Enhancement：Organize professional skills and quality awareness training for operators to familiarize them with production processes and requirements, equipment operation, and common quality issue prevention. Regular assessments ensure operators can perform tasks proficiently and in compliance. Encourage operators to propose improvement suggestions and reward effective ones to boost participation.

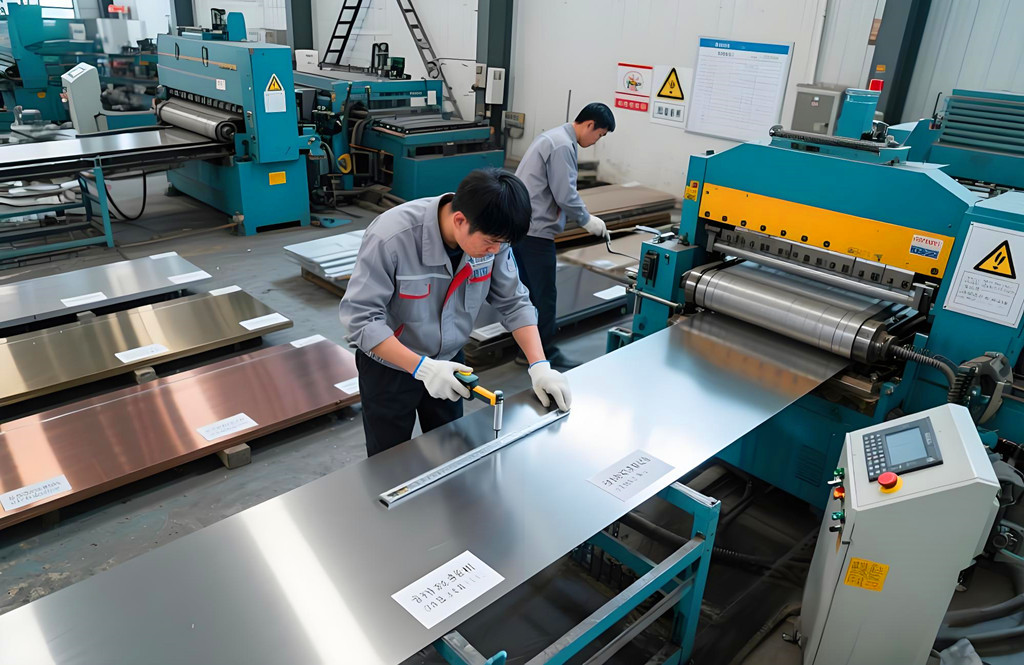

3. Production Process Monitoring Strengthening：Establish quality monitoring points on the production floor and implement a combination of inspection, sampling inspection, and specialized inspection methods to monitor semi - finished and finished products in real - time. Focus on whether process parameters meet requirements, such as cutting equipment settings, polishing duration, and brushing angles. Promptly analyze and address production abnormalities and quality issues, and implement corrective and preventive measures to prevent escalation and recurrence.

(C) Surface Treatment Quality Control

1. Surface Treatment Process Optimization：Regularly research and improve surface treatment processes based on product requirements and market demands. Explore advanced technologies and parameters. For instance, use new polishing wheels and agents to enhance polishing efficiency and quality, adjust brushing equipment parameters and mold designs for finer and more uniform textures, or optimize etching solution formulas and conditions to improve pattern clarity and depth.
2. Strengthened Process Equipment Maintenance：The performance of surface treatment process equipment directly impacts product quality. Establish a comprehensive equipment maintenance system with designated personnel for daily care, including cleaning, lubrication,调试, and repair to ensure normal operation and stable process performance. Regularly inspect and calibrate key equipment, such as polishing machine wheel speed accuracy, brushing machine angle accuracy, and etching equipment temperature control accuracy, to ensure precise processing according to set parameters.

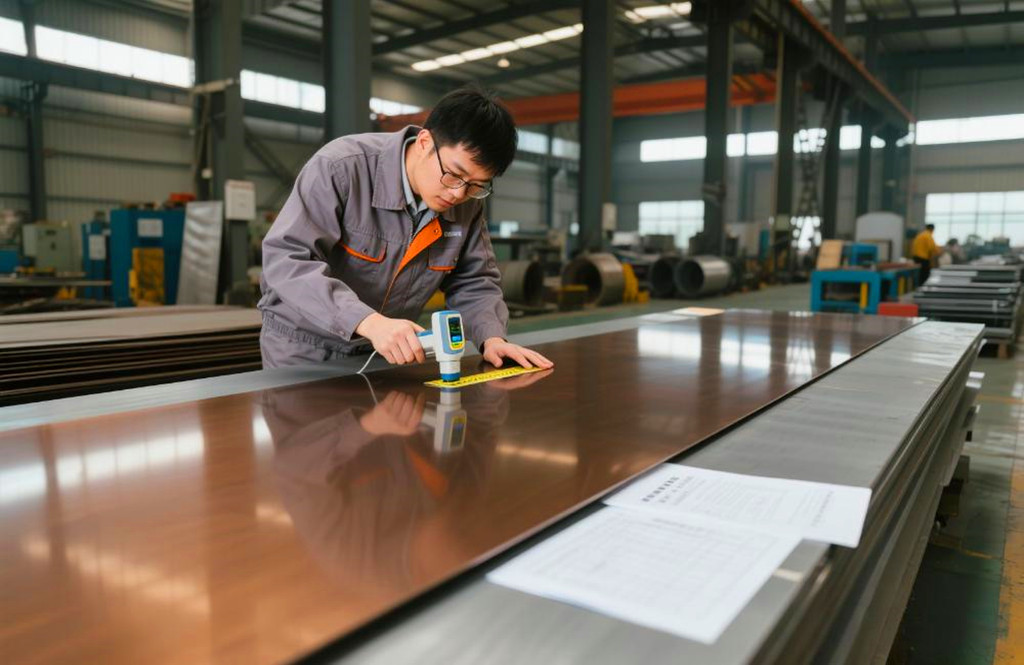

3. Strict Surface Treatment Quality Inspection：Conduct thorough quality inspections after each surface treatment process. Inspectors should follow quality standards and inspection guidelines, using professional tools and instruments for comprehensive checks. For example, use gloss meters to measure polished sheet gloss, contact angle measurement instruments to test sandblasted sheet hydrophilicity, and microscopes to examine etched sheet pattern details. Rework sheets that fail surface treatment quality inspections until they meet standards.

(D) Finished Product Inspection

1. Comprehensive Finished Product Inspection System Establishment：Develop detailed finished product inspection standards and procedures, specifying inspection items, methods, frequency, and judgment criteria. Inspection should cover dimensions, appearance, and performance to ensure decorative stainless steel sheets meet national, industry, and customer requirements before delivery.
2. Combination of Various Inspection Methods：Improve finished product inspection accuracy and comprehensiveness by combining multiple methods. For dimensional inspection, use laser rangefinders in addition to conventional tools. For appearance quality, supplement visual inspection with surface roughness and film thickness testers for quantitative analysis. For performance testing, conduct special tests like salt spray and ultraviolet aging tests in addition to standard corrosion and wear resistance tests to meet diverse environmental requirements.
3. Quality Data Analysis and Continuous Improvement Implementation：Statistically analyze quality data from finished product inspections and utilize tools like SPC, FTA, and FMEA to identify weak points and key factors affecting product quality. Develop and implement targeted improvement measures, and verify their effectiveness in production. Continuous quality improvement enhances decorative stainless steel sheet quality and production stability, boosting competitiveness.

III. Conclusion
